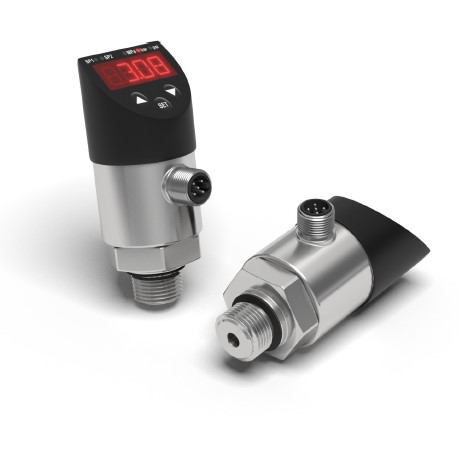

D2710 Programmable pressure sensor and switch with display

JSP, s.r.o.
Raisova 547
CZ - 506 01 Jičín
tel: +420 493 760 811
fax: +420 493 760 820

> > > > > D2710

Measurement of rel. / abs. pressure of liquids, gases and vapours.
Measuring range up to 700 MPa.
Analog output 4 to 20 mA or 0 to 10 / 5 V.
Switching output 2× PNP / NPN.
Accuracy 1%, 0.5% or 0.25%.
Compact and modern stainless steel design with built-in display.
Display incl. electrical connection can be turned within a 330° angle.
"For media compatible with stainless steel 1.4435, 1.4404 in combination with Viton."
Degree of protection IP 65.

Links and documentation:

Cat. No.: 3016
