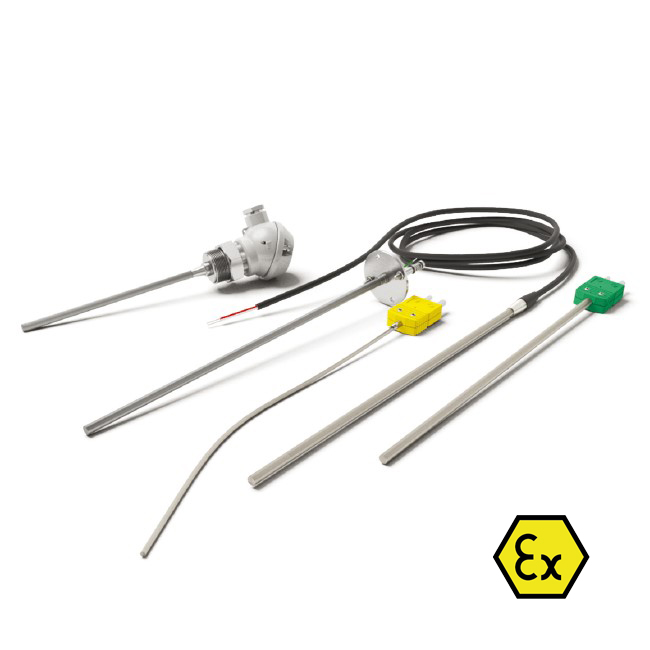

FlexiTEMP® 60 Sheath Resistance and Thermocouple Temperature Sensors

  • Resistance sensor 1x / 2x Pt100, thermocouple 1x / 2x “J“, “K“, “N“
  • Measuring range -200 to +600 °C (Pt100), -200 to +800 °C (“J“), -200 to +1300 °C (“K“, "N")
  • Accuracy class A, B according to EN 60751, 1, 2 according to EN 60584-1
  • Sheath material stainless steel 1.4541, 1.4401, Inconel 600, Nicrobell/Pyrosil
  • Outside diameter of 1 to 6 mm
  • Selectable nominal length L: 0.1 to 50 m
  • Fast response to temperature changes
  • Flexible stem
  • Optional version of cold junction, with flying leads, connected compensating cable, flat connector, flange and MA head
  • Intrinsically safe version (Ex) II 1/2G Ex ia IIC T6...Tx°C Ga/Gb, (Ex) II 1/2D Ex ia IIIC T85°C...Tx°C Da/Db
