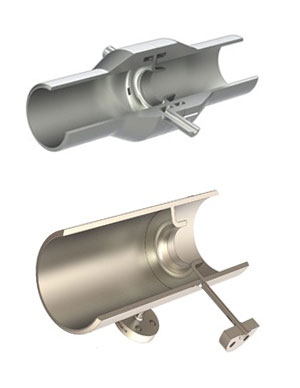

Chamber and Spot Measuring Nozzles with Metering Runs DKV, DBV

  • Nominal diameter DN50 to DN600
  • Nominal pressure PN6 to PN250
  • Temperature range up to 600 °C (620 °C)
  • Material P235GH, 1.5415, 1.7335, 1.7715, 1.7380, 1.4903, 1.4541, 1.4571
  • Angle of extraction pipes 0 to 180° or double extraction
  • Chamber or spot version of extractions
  • Length of straight sections:
    - standard 2D in front of and 0.5D behind nozzle (2D in front of and 2D behind nozzle for chamber extraction up to DN 300);
    - optional according to agreement with the manufacturer
  • Documentation for certification acc. to Directive PED 2014/68/EU
Product Inquiry
  Cat. No.: 2217
