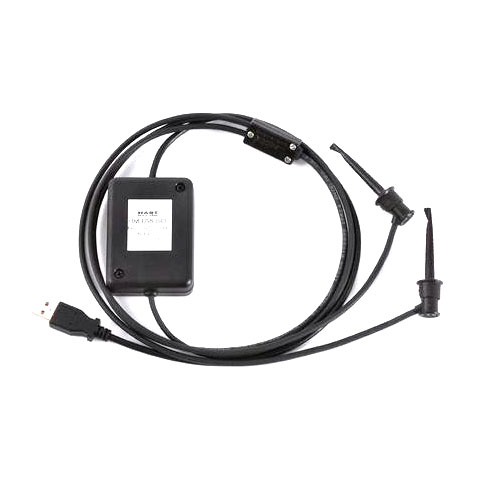

USB HART Modem HM-USB-ISO, Minigrabber connectors

HART Foundation registered compliant HART Modem with a USB interface. Connects your PC to your HART instruments for configuration and monitoring. Electrically isolated for enhanced safety and performance.

  • HART Foundation Registered, Registration Number L2-06-1000-070
  • CE Certified
  • 1500 Vdc Opto Isolation between HART and USB circuits
  • USB 1.1 and 2.0 compatible
  • Integral standard USB type A connector
  • Integral heavy duty HART Minigrabber connectors (banana plug option available - HM-USB-ISO-BP)
  • Certified to meet HART Physical Layer Spec HCF_SPEC-54
  • Self powered, no external power supply or batteries needed
  • Standard cable length 1,2 m (custom cable lengths available)
  • Easy to install Virtual Serial Port for any Windows application
  • Compact size 70 x 51 x 20 mm
  • Rugged ABS plastic enclosure
  • HART Modem Test Program included
  • Works with Windows 7 and higher



Links and documentation:

Product Inquiry
  Cat. No.: 2522-002
