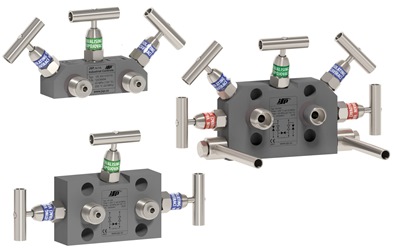

Three- and Five-way Manifolds VS 300, VS 500 and VS 501

  • Operating pressure up to 42 MPa
  • Operating temperature up to 500 °C
  • Direct installation on a pressure sensor or between impulse piping
  • Sealing component selection from different material: Graphite, PTFE, PEEK, Viton, EPDM
  • Gland packing adjuster
  • Seat diameter 4 mm
  • Drain piping on the side of the manifold body enables arbitrary position of the manifold
  • EU Type Examination Certificate according to Directive PED 2014/68/EU



   Links and documentation:



Product Inquiry
  Cat. No.: 0217
