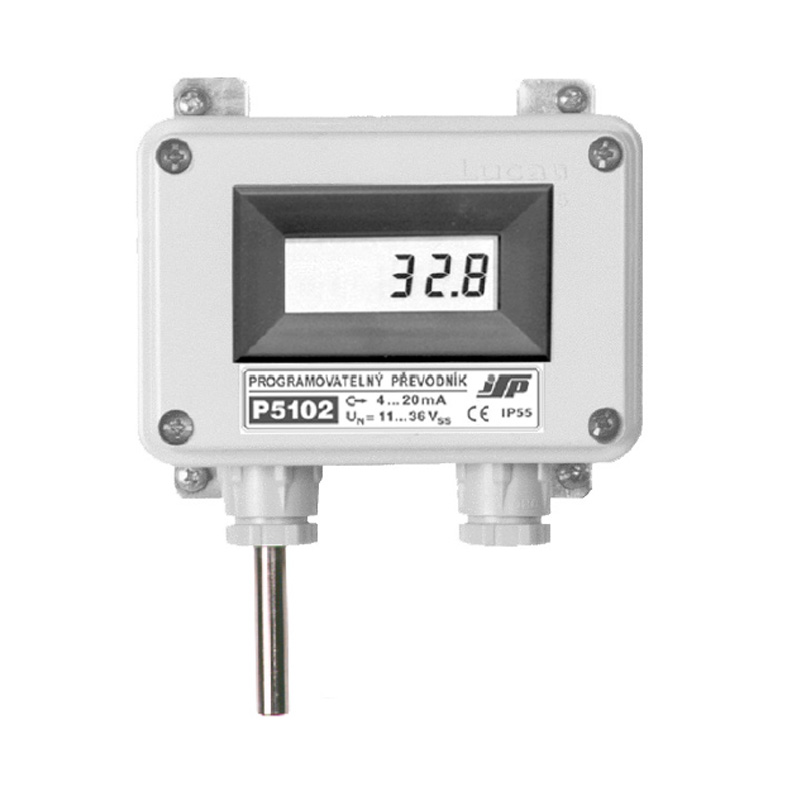

• Measuring resistor Pt100
• Measuring range: with cable sensor -40 to +180 °C, with local sensor -40 to +70 °C (without display), 10 to +55 °C (with display)
• Accuracy class A, B according to EN 60751
• Converts of Pt100 resistance signal to current output signal 4 to 20 mA of the temperature
• Built-in LCD display indicates the temperature in the whole input range with readability 0,1 °C
• Allows to directly change the analog output range using buttons
• Indicates break of temperature sensor or line using either high (>20 mA) or low (<4 mA) output current
• Version with local sensor or with movable sensor with cable line. Mounting on the wall using the bracket
• Wide range of uses
• Housing IP 55



   Links and documentation:

• Datasheet (En)
• Manual (En)
